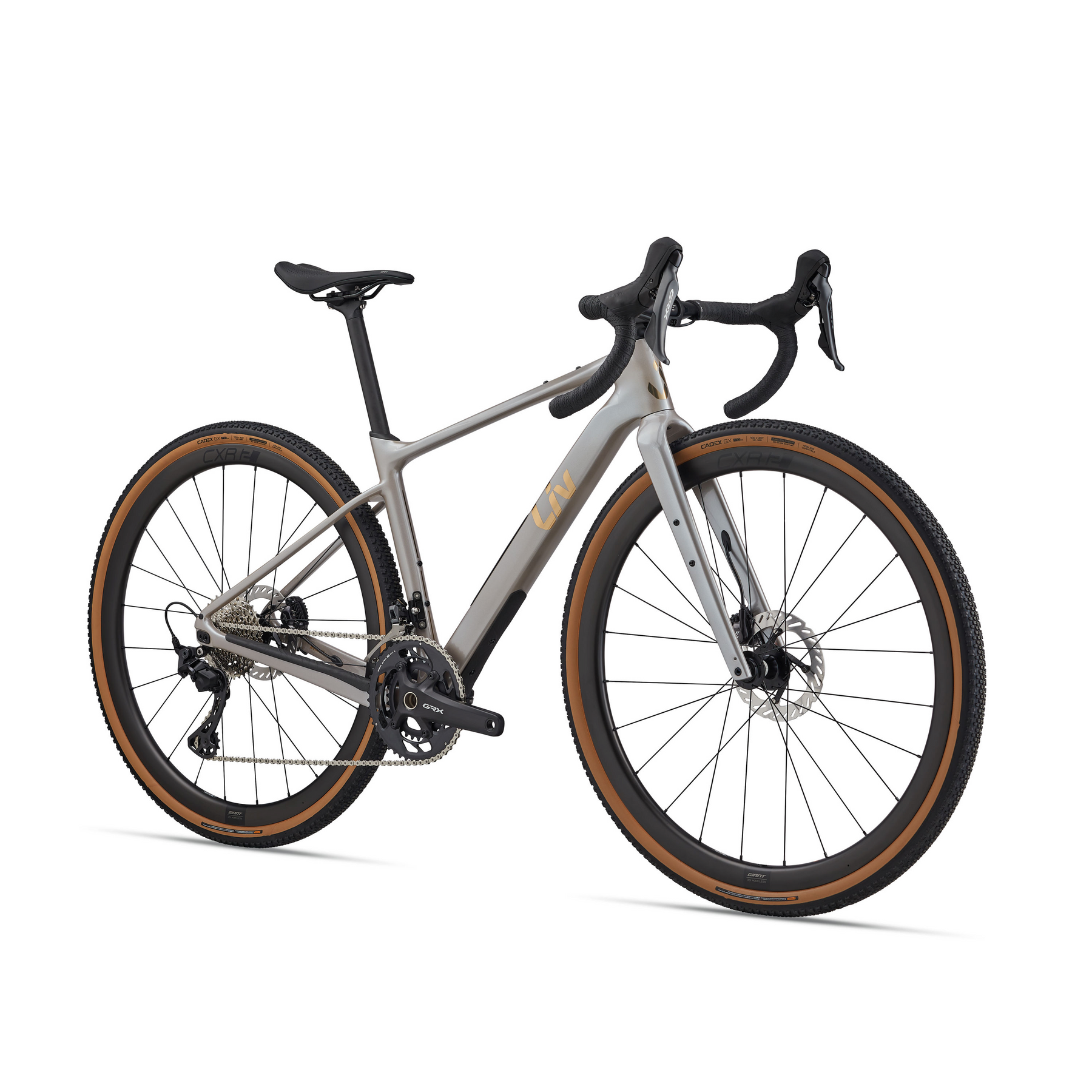

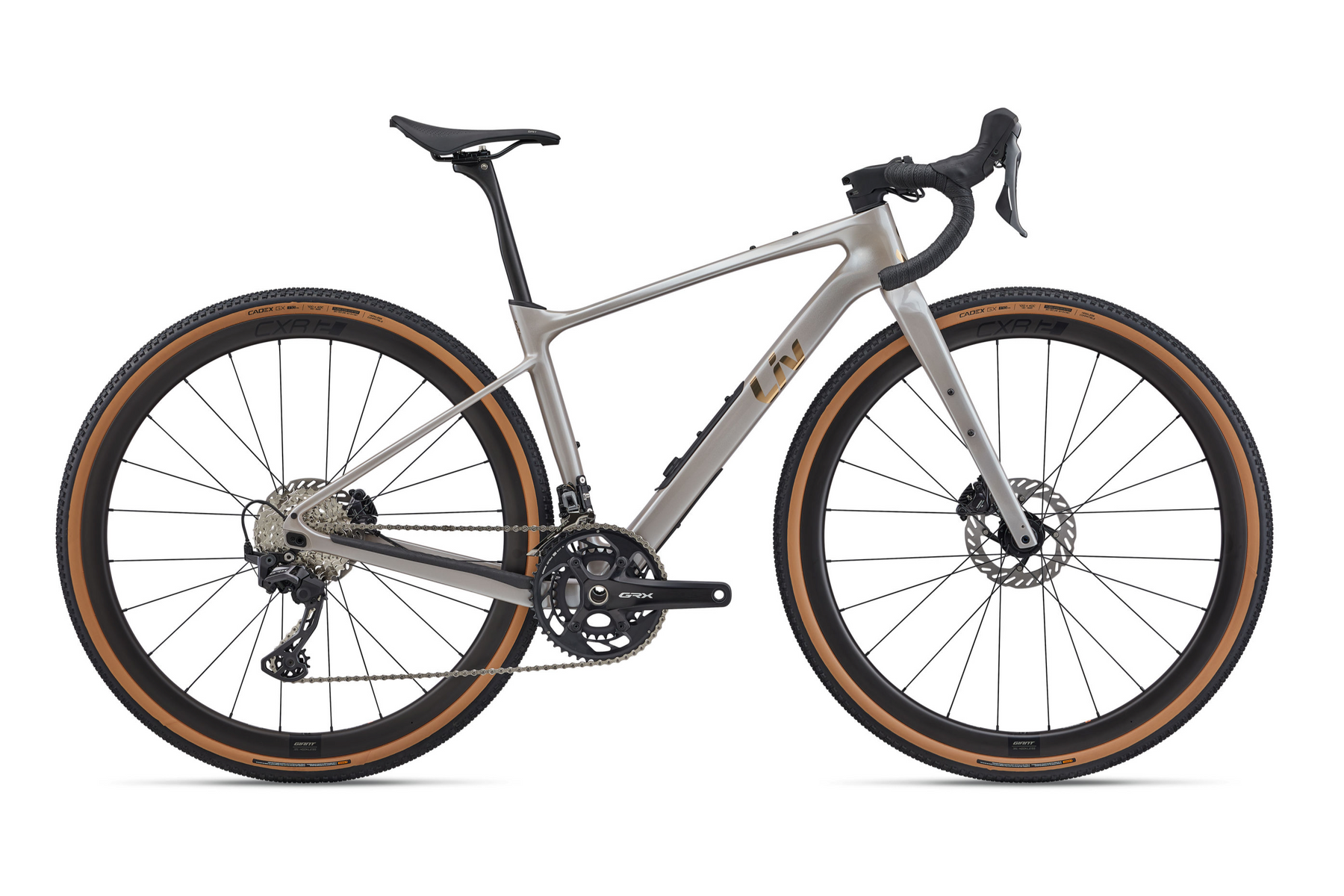

Liv Devote Advanced 0 Gravel Bike - Camel Silk

Giant SKU: 9032025103
Size
Price
Regular price $5,199.00
Regular price Sale price $5,199.00
Save $-5,199
/
Tax included.

The Devote Advanced is your go-to for going fast, wherever the gravel muse may call you. Balancing speed and ruggedness, this versatile bike is ready for race day, rest day, and multi-day adventures.
Key Performance Factors
Ultralight Agility
An ultralight Advanced-grade composite frame and fork make for snappy acceleration, while internal cable routing streamlines your cockpit and makes room for your must-have accessories. And the redesigned geometry puts you in a more aggressive position, increases traction and stability, and allows more control at speed and on descents.

Superior Compliance and Control
The Contact XR D-Fuse handlebar features a 5-degree back sweep and flare drop for comfortable and ergonomic grip. Select models also feature the Contact D-Fuse seatpost and one is equipped with a dropper post. Or swap out for your preferred set-up. These proprietary D-Fuse components absorb bumps and reduce vibrations, ensuring less fatigue and more fun on those epic rides.

Unmatched Versatility
Adapt to the route with the flip chip – dropout, which lets you adjust your wheelbase length and rear-wheel tire clearance. Go shorter for responsive handling and quick acceleration. Go longer for added stability plus clearance for larger tires and extra traction. Plus, the integrated down tube storage lets you stash a multi-tool or extra fuel, so nothing’s slowing you down.

Colours Camel Silk
Sizes XS, S, M
Frame Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout
Fork Advanced-Grade Composite,
 full-composite OverDrive steerer, 12mm thru-axle, disc
Handlebar Giant Contact XR D-Fuse, 31.8mm                                                  XS:40cm, S:40cm, M:42cm
Grips Liv All Condition
Stem Giant Contact Aerolight                                                                                         XS:50mm, S:60mm, M:70mm
Seatpost Giant D-Fuse composite, -5/+15mm offset
Saddle Liv Grit
Pedals N/A
Shifters Shimano GRX RX-820, 2x12
Front Derailleur Shimano GRX RX-820
Rear Derailleur Shimano GRX RX-820
Brakes Shimano GRX RX-820 hydraulic, Shimano SM-RT70 rotors                                                     [F]160mm, [R]160mm
Brake Levers Shimano GRX RX-820 hydraulic
Cassette Shimano CS-HG710, 12-speed, 11x36
Chain KMC X12L-1
Crankset Shimano GRX RX-820, 31/48                                                                 XS:165mm, S:170mm, M:172.5mm
Bottom Bracket Shimano, press fit
Rims Giant CXR 2 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm
Hubs [F] Giant alloy, CenterLock, 12mm thru-axle
[R] Giant alloy, 3-pawl driver, CenterLock, 12mm thru-axle
Spokes Sapim Sprint
Tyres CADEX GX, 700x40c, tubeless
Extras Tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position, in-frame storage bag



bike diagram with measurements referenced in table that follows
    XS S M L
    SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG
A Seat Tube Length (mm) 390 420 465 500
B Seat Tube Angle 74.5° | 74.4° 74.5° | 74.4° 74.5° | 74.4° 74.5° | 74.4°
C Top Tube Length (mm) 525 | 525 535 | 535 545 | 545 555 | 555
D Head Tube Length (mm) 90 110 140 160
E Head Tube Angle 70.0° | 69.9° 70.5° | 70.4° 71.0° | 70.9° 71.0° | 70.9°
F Fork Rake (mm) 50 50 50 50
G Trail (mm) 78.4 | 82 75 | 78.5 71.6 | 75.1 71.6 | 75
H Wheelbase (mm) 1012 | 1022 1019 | 1029 1026 | 1036 1043 | 1052
I Chain Stay Length (mm) 425 | 435 425 | 435 425 | 435 430 | 440
J Bottom Bracket Drop (mm) 80 | 81 80 | 81 80 | 81 80 | 81
K Stack (mm) 523 | 524 544 | 545 574 | 575 593 | 594
L Reach (mm) 380 | 379 384 | 383 386 | 385 391 | 389
M Stand Over Height (mm) 681 | 688 708 | 715 748 | 755 779 | 786
N Handlebar Width (mm) 400 400 420 420
O Stem Length (mm) 50 60 70 80
P Crank Length (mm) 165 170 172.5 172.5
