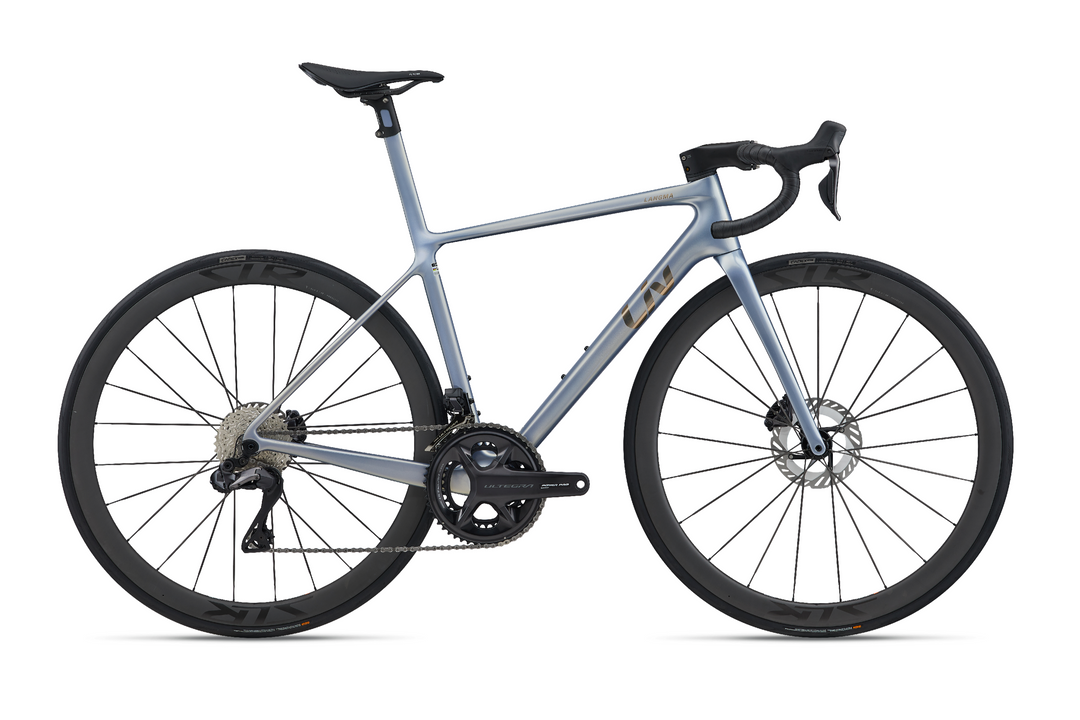

Liv Langma Advanced SL 1 Road Bike - Dreamy Blue

Liv Langma Advanced SL 1 Road Bike - Dreamy Blue

Giant SKU: 9065038103
Size
Price
Regular price $8,999.00
Regular price Sale price $8,999.00
Save $-8,999
/
Tax included.

The official bike of WorldTeam Liv AlUla Jayco, the Langma Advanced SL is the queen of all-rounder performance. The race-engineered frameset and components are seamlessly integrated, delivering the efficient power transfer you need to rule the mountains. Superior control and aerodynamics slingshot you through the finish in a blur of glory.
Key Performance Factors
QOM-LEVEL EFFICIENCY
The new frameset includes an all-new Variant Integrated Seatpost, which means less weight, greater compliance, and improved aero performance—turning every pedal stroke into a burst of “let’s go.”

LIMIT-PUSHING CONTROL
The flared handlebar injects control and confidence into those explosive sprints and bomber descents. Ready to race the cobbles? Run up to 33mm tyres, without sacrificing precise handling.

GAP-WIDENING AERO
With a truncated ellipse tube shape, the new frameset is built to slice through wind and pelotons. A new internal cable routing design delivers a streamlined cockpit and added aero advantage.

Sizes XS, S, M
Frame Advanced SL-Grade Composite, 12x142mm thru-axle, integrated seatpost, disc
Fork Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
Shock N/A
Handlebar Liv Contact SLR                                                                                                               XS:34/36cm, S:36/38cm, M:38/40cm
Grips Stratus Elite 2.0
Stem Giant Contact SLR AeroLight                                                                                               XS:80mm, S:90mm, M:100mm
Seatpost Advanced SL-Grade composite, integrated design, -5/+15mm offset
Saddle Liv Alacra SLR
Pedals N/A
Shifters Shimano Ultegra Di2 ST-R8170
Front Derailleur Shimano Ultegra Di2 FD-R8150
Rear Derailleur Shimano Ultegra Di2 RD-R8150
Brakes Shimano Ultegra Di2 hydraulic, Shimano RT-CL800 rotors
[F]160mm, [R]140mm
Brake Levers Shimano Ultegra Di2
Cassette Shimano Ultegra, 12-speed, 11x34
Chain Shimano Ultegra
Crankset Shimano Ultegra, 36/52 with Giant Power Pro power meter
  XS:165mm, S:165mm, M:170mm
Bottom Bracket Shimano, press fit
Rims Giant SLR 0 40 WheelSystem, [F]40mm, [R]40mm
Hubs [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle
 [R] Giant Low Friction Hub, 40t ratchet driver, CenterLock, 12mm thru-axle
Spokes Giant Aero Carbon Spoke
Tyres CADEX Race GC, tubeless, 700x28c (28mm), folding
Extras Computer mount, tubeless prepared, 33mm max tyre size



bike diagram with measurements referenced in table that follows
    XS S M
A Seat Tube Length (mm) 640 680 720
B Seat Tube Angle 75.0° 74.5° 74.0°
C Top Tube Length (mm) 508 524 540
D Head Tube Length (mm) 120 135 155
E Head Tube Angle 71.0° 72.0° 72.5°
F Fork Rake (mm) 49 49 49
G Trail (mm) 68 61 58
H Wheelbase (mm) 973 977 984
I Chain Stay Length (mm) 405 405 405
J Bottom Bracket Drop (mm) 72 70 70
K Stack (mm) 517 532 553
L Reach (mm) 370 377 382
M Stand Over Height (mm) 707 736 763
O Stem Length (mm) 80 90 100
P Crank Length (mm) 165 170 170
