Hang with the fast group, go for the sprint, cheat the wind on a solo ride. The new Propel Advanced Pro is now lighter, smoother and more efficient, delivering higher speeds to help you maximize every effort.
INSTANT SPEED In the moments when explosive speed matters most—launching an attack, chasing a break, or sprinting for the finish line—the new Propel Advanced Pro is quicker and more dynamic than ever. The frameset is lighter than the previous generation with greater torsional stiffness and pedaling stiffness—so you feel instantaneous reaction when you make your move
SUSTAINED SPEED A reengineered frameset and integrated components combine for a smoother ride when you’re rolling in the group or piling up training miles. The Vector seatpost offers greater compliance compared to the previous generation, while the fork and integrated cockpit absorb bumps and vibrations up front. And additional tire clearance allows for high-volume tires up to 32mm, further smoothing out the ride to help you maintain higher speeds with less fatigue.
TOP-END SPEED The frameset, cockpit, wheels and tires form a unified system that lowers total resistance when you’re pushing high speeds. The AeroSystem frame and integrated cockpit minimize drag, while the aero WheelSystem and tires reduce rolling resistance. That means more speed for taking pulls, rolling off the front, or driving the pace across flats and over climbs.
| Colours | Cryo Silver |
| Sizes | XS, S, M, M/L, L, XL |
| Frame | Advanced-grade Composite, 12x142mm thru-axle, UDH compatible, integrated seatpost, disc |
| Fork | Advanced SL-grade composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc |
| Shock | N/A |

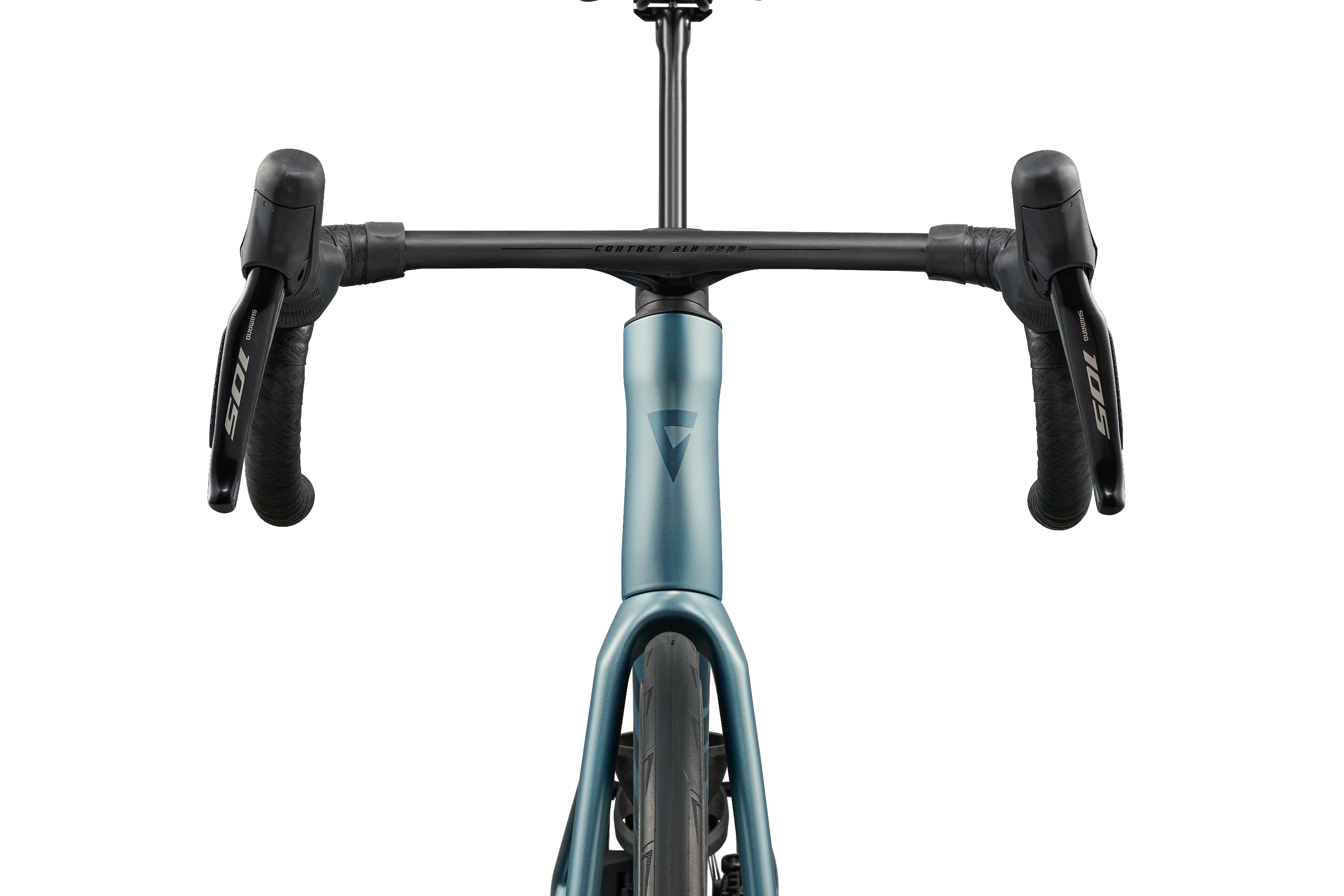

| Handlebar | Giant Contact SLR Aero 1, one piece bar XS:36/38cm, S:36/38cm, M:37/40cm, M/L:37/40cm, L:39/42cm, XL:39/42cm |
| Grips | Stratus Lite 2.0 |
| Stem | Giant Contact SLR Aero 1, one piece bar XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm |
| Seatpost | Giant Vector, composite, -5/+15mm offset |
| Saddle | Giant Fleet SL |
| Pedals | N/A |
| Shifters | Shimano 105 Di2 ST-R7170 |
| Front Derailleur | Shimano 105 Di2 FD-R7150 |
| Rear Derailleur | Shimano 105 Di2 RD-R7150 |
| Brakes | Shimano 105 Di2 hydraulic, Shimano RT-CL700 rotors [F]160mm, [R]140mm |
| Brake Levers | Shimano 105 Di2 hydraulic |
| Cassette | Shimano 105, 12-speed, 11x34 |
| Chain | KMC X12 |
| Crankset | Shimano 105, 36/52 with Giant Power Pro power meter XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm |
| Bottom Bracket | Shimano, press fit |
| Rims | Giant SLR 1 50 Carbon Disc WheelSystem, [F]50mm, [R]50mm |
| Hubs | [F] Giant Aero Hub, CenterLock, 12mm thru-axle [R] Giant Aero Hub, 40t ratchet driver, CenterLock, 12mm thru-axle |
| Spokes | Sapim CX-Ray |
| Tyres | Giant Gavia Course 0, tubeless, 700x28c (28mm), folding |
| Extras | Computer mount, water bottle cages, tubeless prepared, 32mm max tyre size |
| MY27 Propel Advanced Pro / Propel Advanced |
XS | S | M | ML | L | XL | |
| A | Seat tube length | 484 | 505 | 528.5 | 554 | 576 | 595 |
| B | Seat tube angle (degrees) | 74.50 | 74.00 | 73.50 | 73.00 | 73.00 | 72.50 |
| C | Top tube length | 520 | 535 | 550 | 565 | 580 | 600 |
| D | Head tube length | 115 | 127 | 145 | 165 | 185 | 200 |
| E | Head tube angle (degrees) | 71.5 | 72.5 | 73.00 | 73.00 | 73.00 | 73.00 |
| F | Fork rake | 45 | 45 | 45 | 45 | 45 | 45 |
| G | Trail | 67.8 | 61,4 | 58.3 | 58.3 | 58.3 | 58.3 |
| H | Wheelbase | 971 | 973 | 980 | 990 | 1006 | 1020 |
| I | Chain stay length | 405.0 | 405.0 | 405.0 | 405.0 | 405 | 405 |
| J | Bottom bracket drop | 72.0 | 72.0 | 69.5 | 69.5 | 67.0 | 67 |
| K | Stack | 515 | 530 | 546 | 565 | 582 | 596 |
| L | Reach | 377 | 383 | 388 | 392 | 402 | 412 |
| M | Stand over height | 746 | 764 | 787 | 808 | 832 | 847 |
| N | Handlebar width | 380 | 380 | 400 | 400 | 420 | 420 |
| O | Stem length | 80 | 90 | 100 | 110 | 110 | 120 |
| P | Crank length | 165.0 | 165.0 | 170.0 | 170.0 | 172.5 | 172.5 |
| Q | Wheel size | 700C | 700C | 700C | 700C | 700C | 700C |
