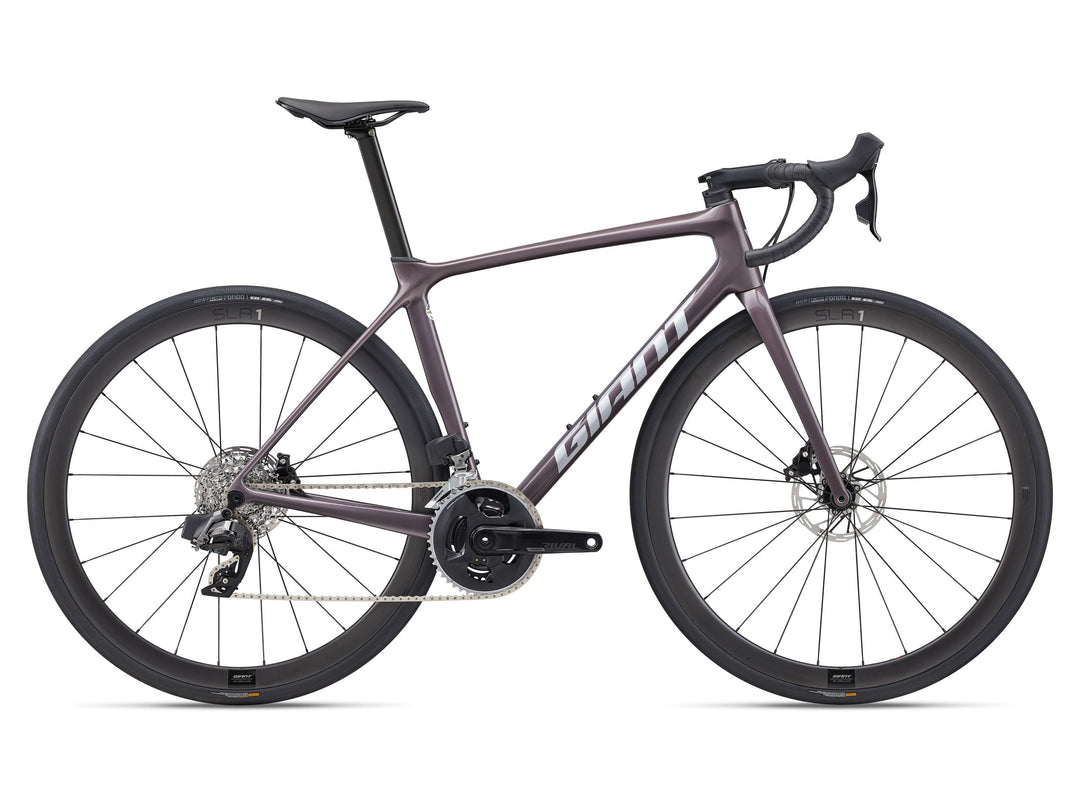

CLIMB, CORNER AND DESCEND WITH SPEED AND EFFICIENCY. FROM THE MOUNTAINS TO THE FLATS, IN ALL TYPES OF CONDITIONS, THIS LIGHTWEIGHT COMPOSITE ROAD RACER TAKES YOU TO THE NEXT LEVEL.
KEY PERFORMANCE FACTORS
Class-leading efficiency
Combining best-in-class stiffness-to-weight with strategically placed aero tube shaping, this frameset is engineered for faster climbing, explosive acceleration and unyielding pedalling stiffness for race-winning performance.
Advanced aerodynamics
This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analysed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.
Total control
Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tyres up to 32mm.
Components
Sizes XS, S, M, M/L, L, XL
Colours Charcoal Plum
Frame Advanced-Grade Composite, disc
Fork Advanced-Grade Composite, full-composite OverDrive 2 steerer, disc
Handlebar Giant Contact SL XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
Grips Stratus Lite 2.0
Stem Giant Contact SL XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
Seatpost Giant Variant, composite, -5/+15mm offset
Saddle Giant Fleet SL
Shifters SRAM Rival eTap AXS
Front Derailleur SRAM Rival eTap AXS
Rear Derailleur SRAM Rival eTap AXS
Brakes SRAM Rival eTap AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm
Brake Levers SRAM Rival eTap AXS hydraulic
Cassette SRAM Rival, 12-speed, 10x36
Chain SRAM Rival D1
Crankset SRAM Rival D1 DUB, 33/46with Power Halo power meter XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket SRAM DUB, press fit
Rims Giant SLR 1 36 Carbon Disc WheelSystem, [F] 36mm, [R] 36mm
Hubs[F] Giant Low Friction Hub, CenterLock, 12mm thru-axle, [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle
Spokes Sapim CX-Ray
Tires Giant Gavia Fondo 1, tubeless, 700x28c (32mm), folding
Extras Computer mount, tubeless prepared, 32mm max tyre size
