Giant Trinity Advanced SL 1 - Ember Violet/Carbon

Giant Trinity Advanced SL

From windswept flats to climbs, corners and descents, the new Trinity Advanced SL delivers dynamic speed and control when every second counts.

Easily adaptable to triathlon or TT, the Trinity Advanced SL features aero-integrated hydration and fuelling systems and is lighter, more aerodynamic and smoother riding than the previous generation. Greater adjustability makes it easier to dial in your ideal position and fit, helping you stay fast and focused from start to finish.

Key Performance Factors

Full-Speed Dynamics

The all-new composite frameset is designed for flat-out speed and pinpoint control when racing against the clock. Its lighter weight helps deliver faster climbing, while integrated disc brakes provide confident braking through corners and descents.

Added compliance creates a smoother ride, while the integrated bento box and hydration straw allow you to produce full power and stay fuelled without disturbing your riding position.

Ultimate Aero Efficiency

AeroSystem Shaping Technology uses truncated ellipse tubing to deliver a 5.9-watt aerodynamic advantage and a greater stiffness-to-weight ratio compared to the previous-generation Trinity.

The hydration reservoir, bottles and bento box work together as an aero-optimised integrated fuelling system, keeping nutrition and hydration accessible while helping minimise aerodynamic drag.

Personalised Fit

The Trinity Advanced SL offers a significantly greater range of adjustability compared to previous Trinity models. Three seatpost offset positions provide a 51mm range, while 24x more armrest positioning options allow you to adjust stack, reach, angle and width.

Simple two-bolt mechanisms make it easier than ever to dial in your ideal position for different body types, courses and riding positions.

Technology & Features

• Advanced SL Composite Technology
• AeroSystem Shaping Technology
• PowerCore
• Tubeless System
• Integrated hydration system
• Integrated bento box
• Integrated cockpit bottle mount
• Computer mount
• UCI Bottle

Specifications

• Sizes: XS, S, M, L
• Colour: Ember Violet/Carbon
• Frame: Advanced SL-grade composite, 12x142mm thru-axle, disc
• Fork: Advanced SL-grade composite, full-composite steerer, 12x100mm, disc
• Handlebar: AeroDrive base bar with Sync armrest set, 10° and 15° extension wedge
• Grips: Rubber integrated
• Stem: AeroDrive integrated stem
• Seatpost: Trinity Composite
• Saddle: Giant Contact SL Tri
• Shifters: SRAM eTap AXS Wireless Blips, extension and basebar mounted
• Front Derailleur: SRAM Force AXS, FD-Force-E-E1
• Rear Derailleur: SRAM Force AXS, RD-Force-E-E1
• Brakes: SRAM Force AXS HRD, ED-Force-AERO-E1
• Brake Levers: SRAM Force AXS HRD, ED-Force-AERO-E1
• Rotors: SRAM PaceLine X, 160mm front / 160mm rear
• Cassette: SRAM Force E1 XG-1270, 12-speed, 10-33T
• Chain: SRAM Force-E1, 12-speed
• Crankset: SRAM Force E1 DUB, 37/50T with SRAM power meter
• Crank Length: XS: 160mm, S: 165mm, M: 170mm, L: 172.5mm
• Bottom Bracket: SRAM DUB, press fit
• WheelSystem: Giant SLR 1 50 Carbon Disc WheelSystem
• Rim Depth: 50mm front / 50mm rear
• Front Hub: Giant Low Friction Hub, CenterLock, 12mm thru-axle, 21H
• Rear Hub: Giant Low Friction Hub, 40T ratchet driver, CenterLock, 24H
• Spokes: Sapim CX-Ray
• Tyres: CADEX Aero, tubeless, 700x28c (28mm), folding
• Extras: Bento box top tube storage, hydration kit, UCI Bottle, cockpit bottle mount, computer mount, tubeless prepared
• Max Tyre Clearance: 30mm

Sizing Guide

Sizing is provided as a reference only. Please check with a local authorised dealer to determine the correct size. Available sizes may vary from country to country.

• XS: 159–169cm
• S: 166–176cm
• M: 173–182cm
• L: 181–191cm

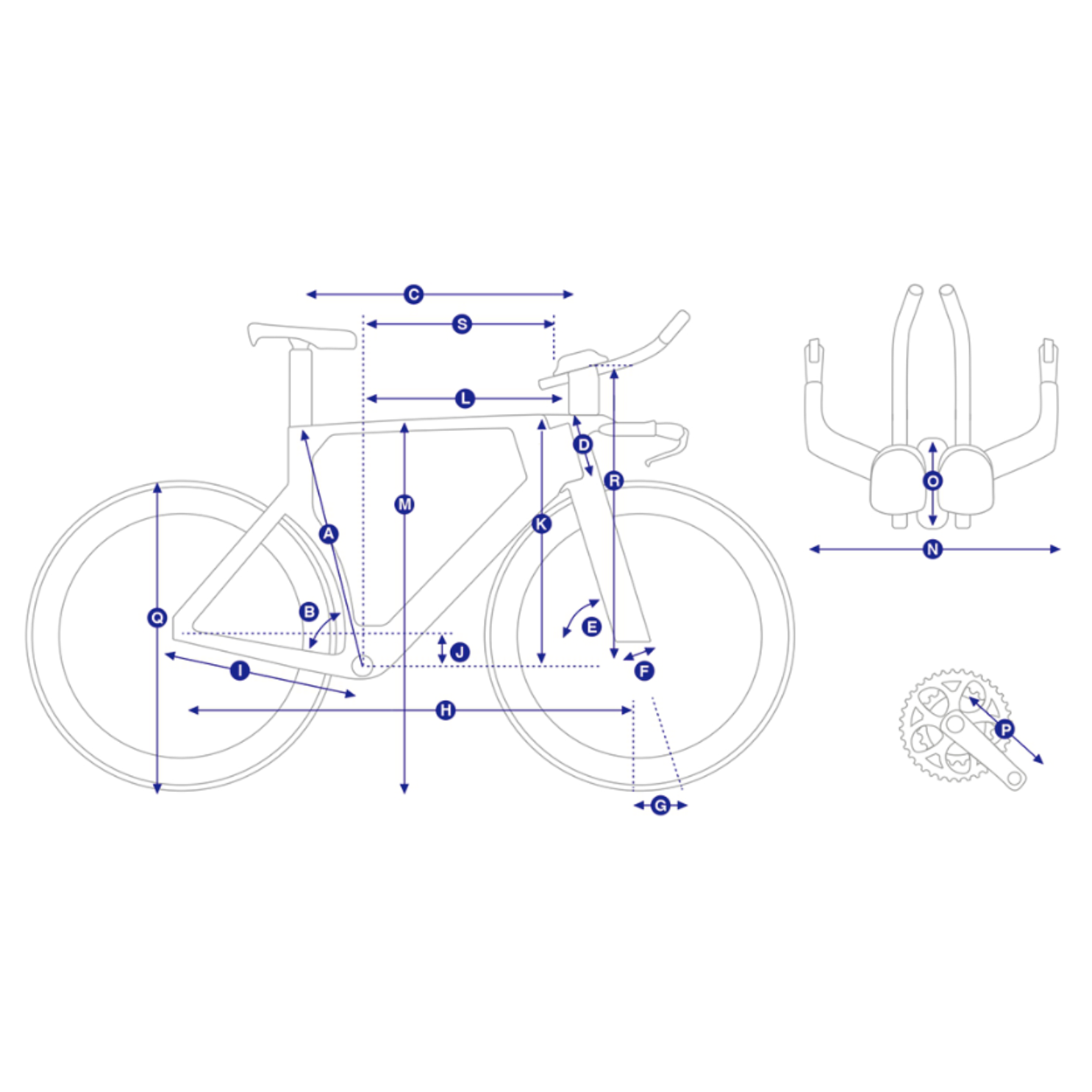

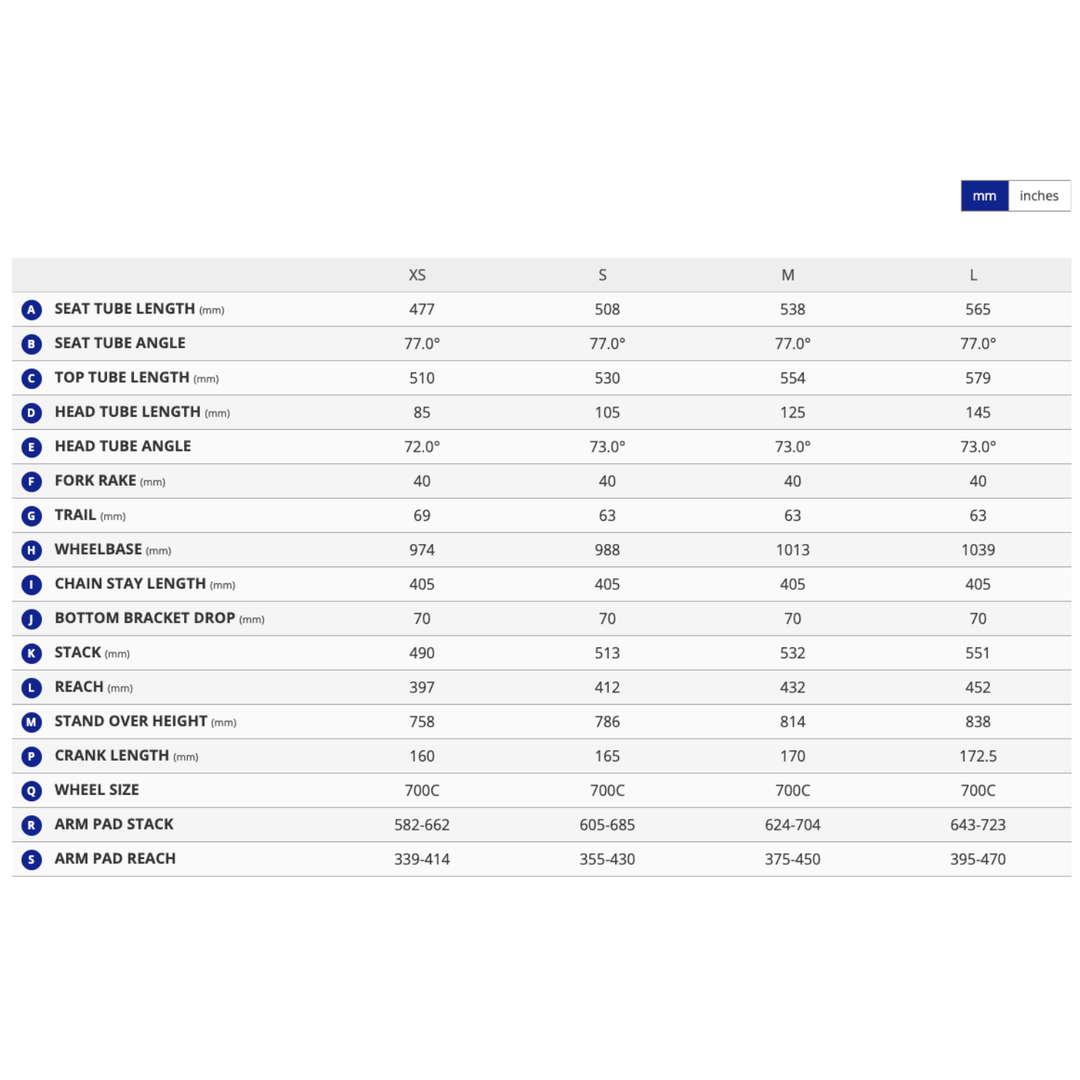

Geometry

Weight

The most accurate way to determine a bike's weight is to have your local dealer weigh it. Actual weight can vary depending on frame size, finish, hardware and accessories.

All Giant bikes are designed around a balance of low weight, aerodynamic performance, stiffness and ride quality.
