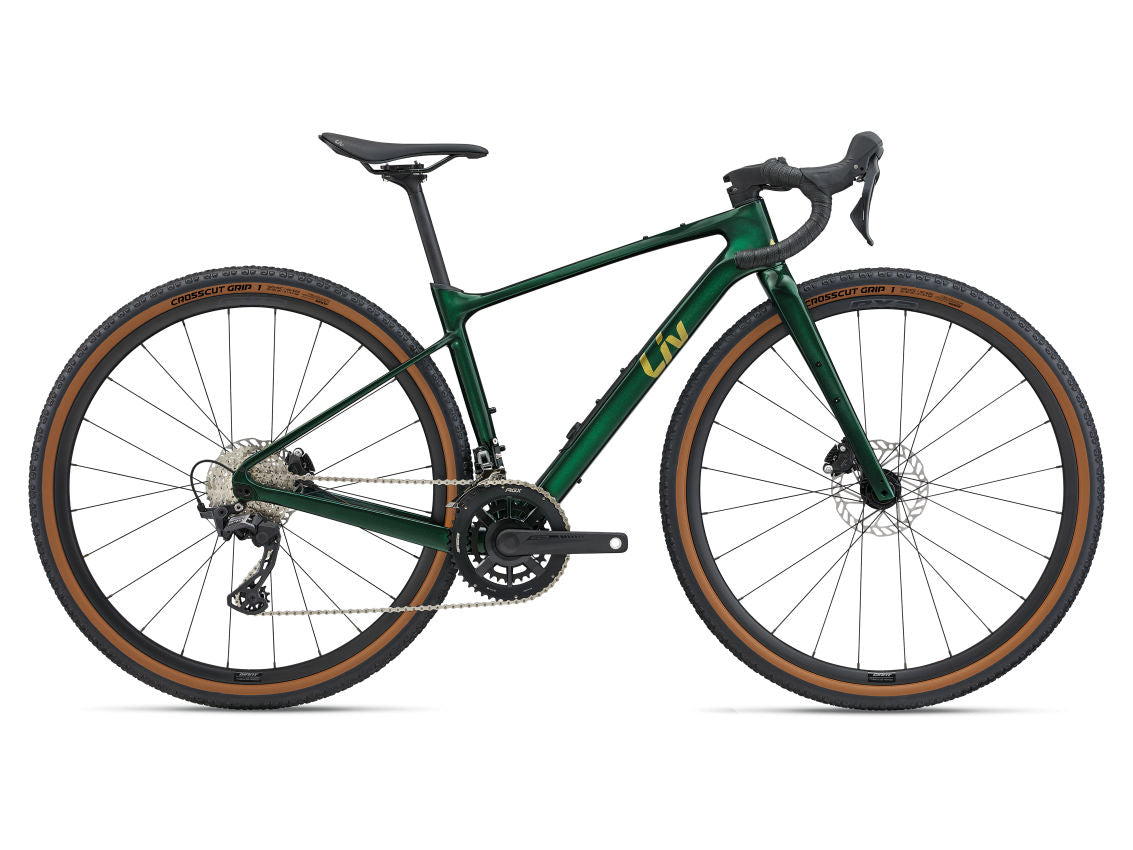

Liv Devote Advanced 2 - Kelp Forest

Size
Price
Regular price $3,699.00
Regular price Sale price $3,699.00
/
Tax included.

*In-Store Collection Only*

THE DEVOTE ADVANCED IS YOUR GO-TO FOR GOING FAST, WHEREVER THE GRAVEL MUSE MAY CALL YOU. BALANCING SPEED AND RUGGEDNESS, THIS VERSATILE BIKE IS READY FOR RACE DAY, REST DAY, AND MULTI-DAY ADVENTURES.
KEY PERFORMANCE FACTORS

Ultralight agility
An ultralight Advanced-grade composite frame and fork make for snappy acceleration, while internal cable routing streamlines your cockpit and makes room for your must-have accessories. And the redesigned geometry puts you in a more aggressive position, increases traction and stability, and allows more control at speed and on descents.

Superior compliance and control
The Contact XR D-Fuse handlebar features a 5-degree back sweep and flare drop for comfortable and ergonomic grip. Select models also feature the Contact D-Fuse seatpost and one is equipped with a dropper post. Or swap out for your preferred set-up. These proprietary D-Fuse components absorb bumps and reduce vibrations, ensuring less fatigue and more fun on those epic rides.

Unmatched versatility
Adapt to the route with the flip chip – dropout, which lets you adjust your wheelbase length and rear-wheel tyre clearance. Go shorter for responsive handling and quick acceleration. Go longer for added stability plus clearance for larger tyres and extra traction. Plus, the integrated down tube storage lets you stash a multi-tool or extra fuel, so nothing’s slowing you down.


Size Guide
XS - 150 cm  to  163 cm
S - 158 cm  to  169 cm
M - 164 cm  to  175 cm
L - 170 cm  to  181 cm

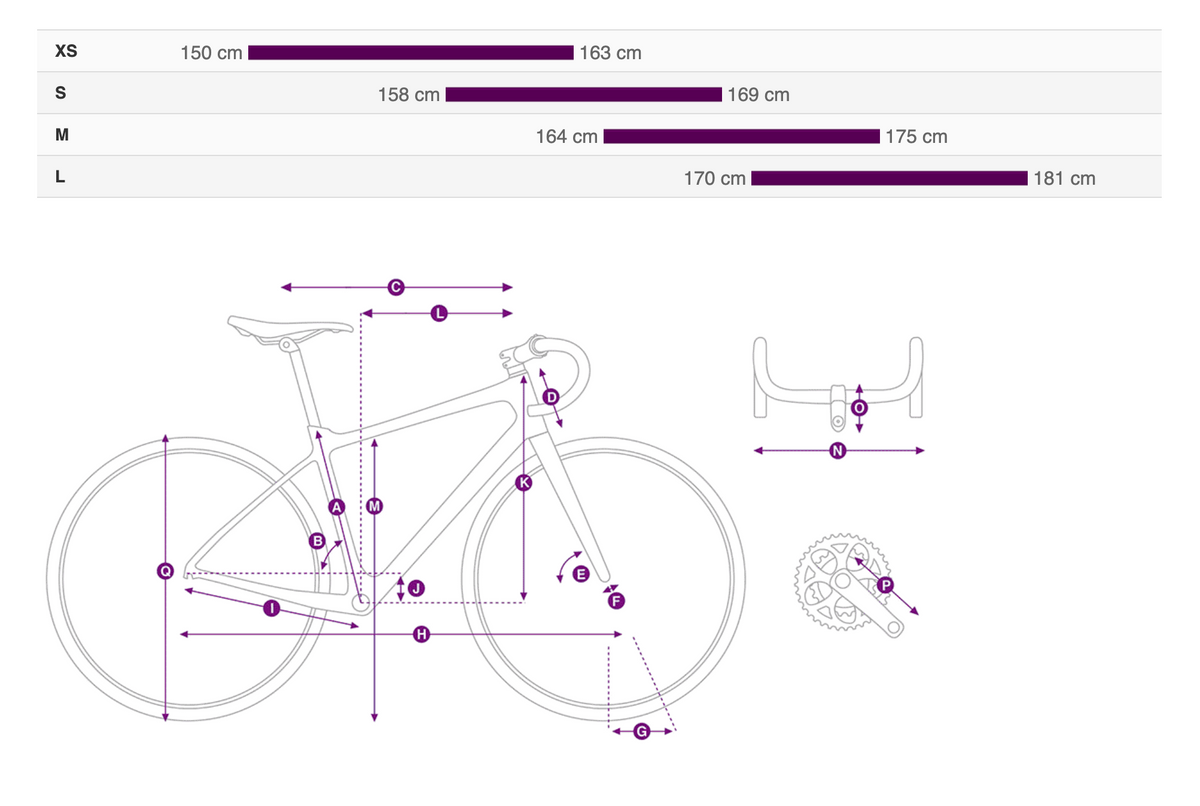

bike diagram with measurements referenced in table that follows

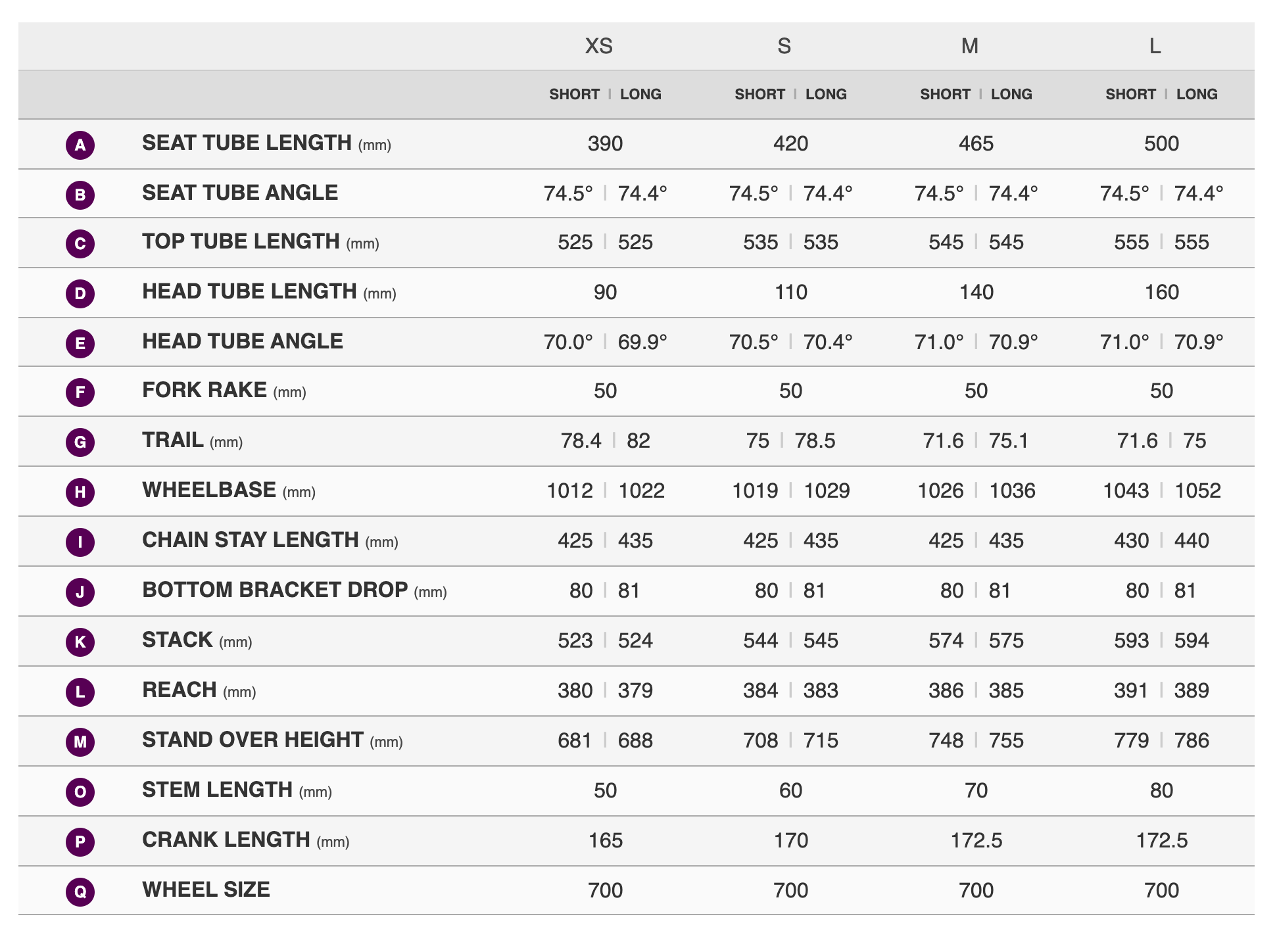

    XS S M L
    SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG
A SEAT TUBE LENGTH (mm) 390 420 465 500
B SEAT TUBE ANGLE 74.5° | 74.4° 74.5° | 74.4° 74.5° | 74.4° 74.5° | 74.4°
C TOP TUBE LENGTH (mm) 525 | 525 535 | 535 545 | 545 555 | 555
D HEAD TUBE LENGTH (mm) 90 110 140 160
E HEAD TUBE ANGLE 70.0° | 69.9° 70.5° | 70.4° 71.0° | 70.9° 71.0° | 70.9°
F FORK RAKE (mm) 50 50 50 50
G TRAIL (mm) 78.4 | 82 75 | 78.5 71.6 | 75.1 71.6 | 75
H WHEELBASE (mm) 1012 | 1022 1019 | 1029 1026 | 1036 1043 | 1052
I CHAIN STAY LENGTH (mm) 425 | 435 425 | 435 425 | 435 430 | 440
J BOTTOM BRACKET DROP (mm) 80 | 81 80 | 81 80 | 81 80 | 81
K STACK (mm) 523 | 524 544 | 545 574 | 575 593 | 594
L REACH (mm) 380 | 379 384 | 383 386 | 385 391 | 389
M STAND OVER HEIGHT (mm) 681 | 688 708 | 715 748 | 755 779 | 786
O STEM LENGTH (mm) 50 60 70 80
P CRANK LENGTH (mm) 165 170 172.5 172.5
Q WHEEL SIZE 700 700 700 700



Specifications
Colours: Kelp Forest
Sizes: XS, S, M, L
Frame: Advanced-Grade Composite, 12x142mm thru-axle, flat mount disc
Fork: Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Shock: N/A
Handlebar: Giant Contact XR D-Fuse, 31.8mm XS:40cm, S:40cm, M:42cm, L:42cm     Grips: Liv All Condition
Stem: Giant Contact Aerolight XS:50mm, S:60mm, M:70mm, L:80mm
Seatpost: Giant D-Fuse, composite
Saddle: Liv Approach
Pedals: N/A
Shifters: Shimano GRX RX-610, 2x12
Front Derailleur: Shimano GRX RX-820
Rear Derailleur: Shimano GRX RX-820
Brakes: Shimano GRX RX-410 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers: Shimano GRX RX-610 hydraulic
Cassette: Shimano HG710, 12-speed, 11x36
Chain: KMC X12L-1
Crankset: FSA Omega Modular AGX+, 32/48 XS:165mm, S:170mm, M:172.5mm, L:172.5mm
Bottom Bracket: FSA Mega EXA
Rims: Giant P-X2 Disc wheelset, alloy
Hubs: Giant alloy, 12mm thru-axle
Spokes: Stainless 14G
Tyres: Giant CrossCut Grip, 700x40c, tubeless
Extras: Tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position

Mfr Claimed Weight
TBC
