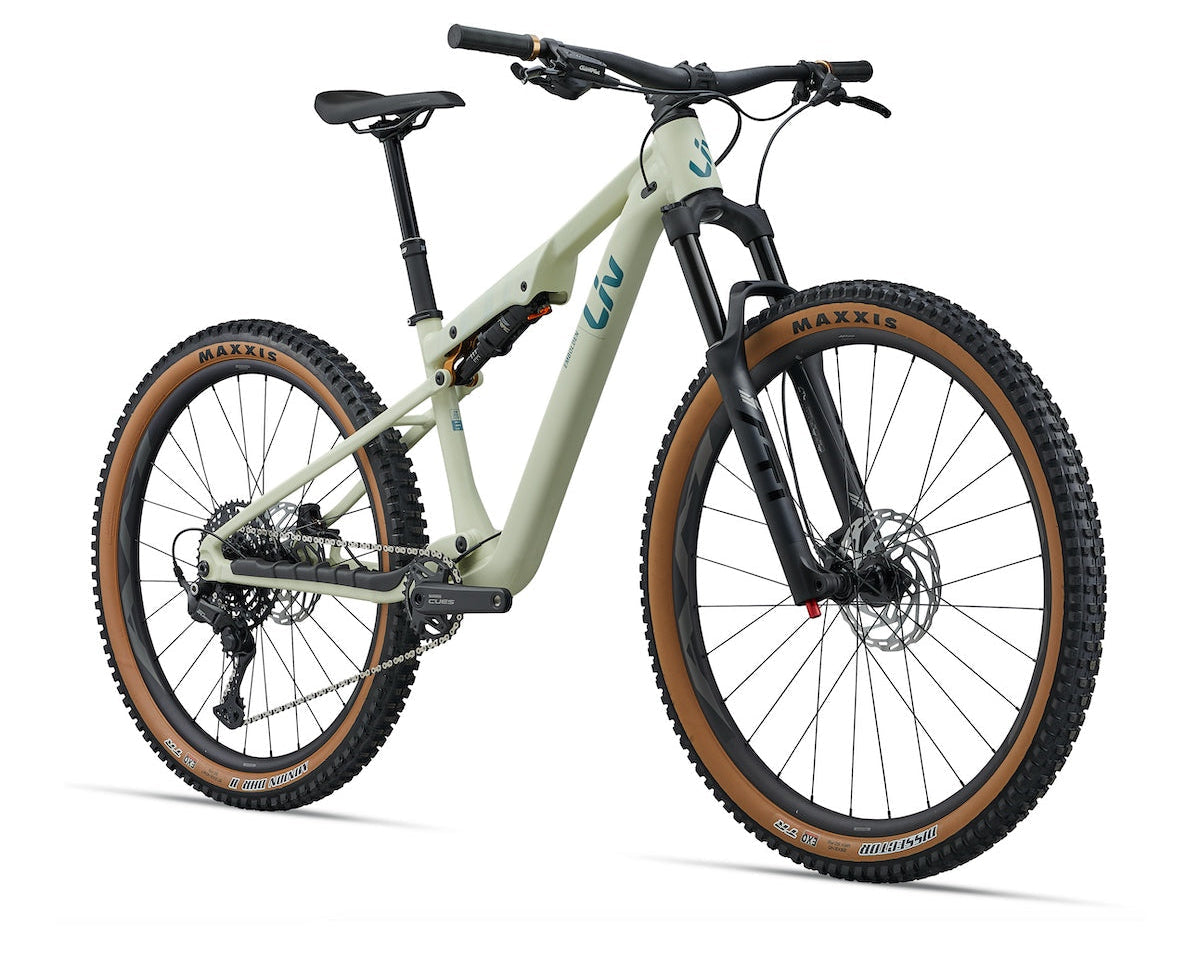

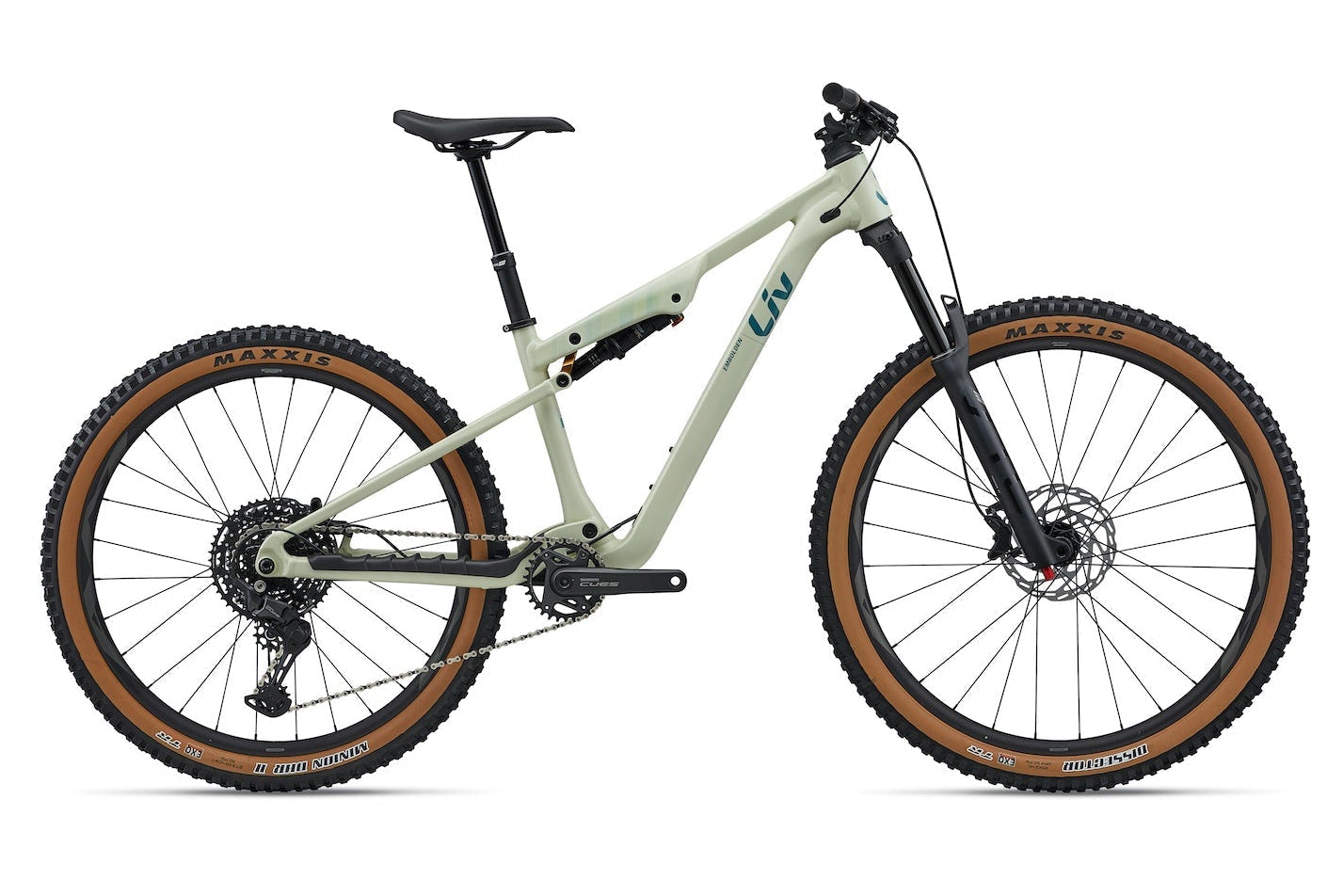

The Embolden is built for riders who want to spend more time riding and less time worrying about their bike. Developed using insights from women riders, its geometry and suspension balance stability, control, and efficiency to create a ride that feels intuitive on the trail. With a lightweight aluminium frame, FlexPoint suspension, and modern trail geometry, Embolden builds confidence as riders move from forest paths to proper singletrack.
Embolden’s modern trail geometry creates a balanced, confidence-inspiring ride, while a size-specific wheel strategy ensures every rider gets the handling that works best for them. Mixed wheels on XS and S frames improve manoeuvrability and fit, while dual 29-inch wheels on M roll smoothly over trail obstacles and maintain momentum. A dropper seatpost lets you quickly lower the saddle for descents and technical sections, helping you stay comfortable and in control as the trail gets more exciting.
The lightweight ALUXX-grade aluminium frame keeps Embolden efficient on climbs and durable for everyday trail adventures. Smart details like a semi-integrated shock design, easy to set up suspension guide on the fork, improved cable routing, and a heavy-duty moulded chainstay protector help keep maintenance simple and the bike running quietly. With reliable components and a clean, practical design, Embolden is built to spend more time out on the trail—and less time in the garage.
FlexPoint rear suspension delivers smooth, predictable control through 130mm of rear-wheel travel, paired with 140mm of front suspension for confident capability on modern trails. The system maintains traction over roots, rocks, and technical terrain while providing a supportive, stable ride feel as trail conditions change.
| Model Name | Embolden |
| Colours | Pale Moss |
| Sizes | XS, S: (F 29"/R 27.5"), M: (F/R 29") |
| Frame | ALUXX-Grade aluminium, UDH, 130mm FlexPoint suspension, 12x148mm thru-axle |
| Fork | Giant STL 34 dual air, 140mm travel, Boost 15x110 |
| Shock | Crest, FloTrac Elite TR, 2 position lever |
| Handlebar | Giant Contact TR35, alloy, 35mm |
| Grips | Giant Tactal Pro Single lock-on |
| Stem | Giant Contact SL35 XS: 40 S:40mm, M:40mm |
| Seatpost | Giant Contact Switch AT dropper, adjustable travel, remote XS: 110-140mm travel / 30.9 x 395mm S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm |
| Saddle | Giant ErgoContact Trail |
| Pedals | N/A |
| Shifters | Shimano CUES, SL-6000, 1x10 |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano CUES, U6000, Shadow+ |
| Brakes | Tektro Gemini M535, 4 piston, hydraulic, TRP rotors 180mm |
| Brake Levers | Tektro Gemini M535 |
| Cassette | Shimano CUES, LG300, 11-48 |
| Chain | KMC X-11 |
| Crankset | Shimano CUES, U6000-1, 30t XS:165mm, S:165mm, M:165mm |
| Bottom Bracket | Shimano, threaded |
| Rims | Giant AM30 tubeless ready sleeve-joint rim 29"F/27.5"R for frame sizes XS/S, 29"F&R for frame sizes for M |
| Hubs | [F] Giant Boost 110x15, Sealed Bearing [R] Giant Boost 148x12, Sealed Bearing, HG |
| Spokes | Sapim Race |
| Tyres | [F] Maxxis Dissector 29x2.4WT, TLR, EXO, Tubeless [R, size M] Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, or [R, size XS and S] Maxxis Dissector 27.5x2.4WT, TLR, EXO, tubeless |
| Extras | Tubeless prepared, max tyre size 2.5", max chainring size 32t for 29", 34t for 27.5" |
| Embolden | XS | S | M |
| Seat tube length | 380 | 390 | 420 |
| Seatpost insertion | 250 | 260 | 290 |
| Seat tube angle (Degrees) | 77.0 | 77.0 | 77.0 |
| Top tube length | 548 | 564 | 584 |
| Head tube length | 90 | 100 | 105 |
| Head tube angle (Degrees) | 65 | 65 | 65 |
| Fork rake | 44 | 44 | 44 |
| Trail | 129 | 129 | 129 |
| Wheelbase | 1158 | 1176 | 1194 |
| Chainstay length | 440 | 440 | 442 |
| Bottom bracket drop | 25 | 25 | 40 |
| Stack | 609 | 618 | 618 |
| Reach | 407 | 422 | 436 |
| Standover height | 758 | 757 | 750 |
| Stem length | 40 | 50 | 50 |
| Crank length | 165 | 165 | 165 |
| Wheel size (front) | 29" | 29" | 29" |
| Wheel size (rear) | 27.5" | 27.5" | 29" |
