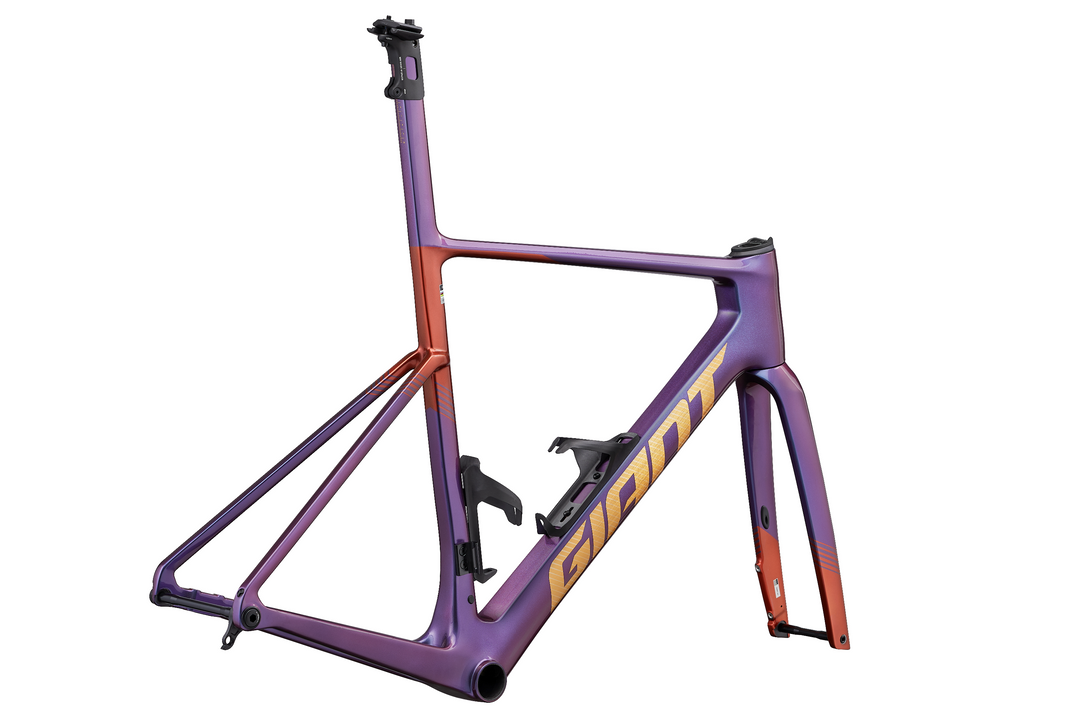

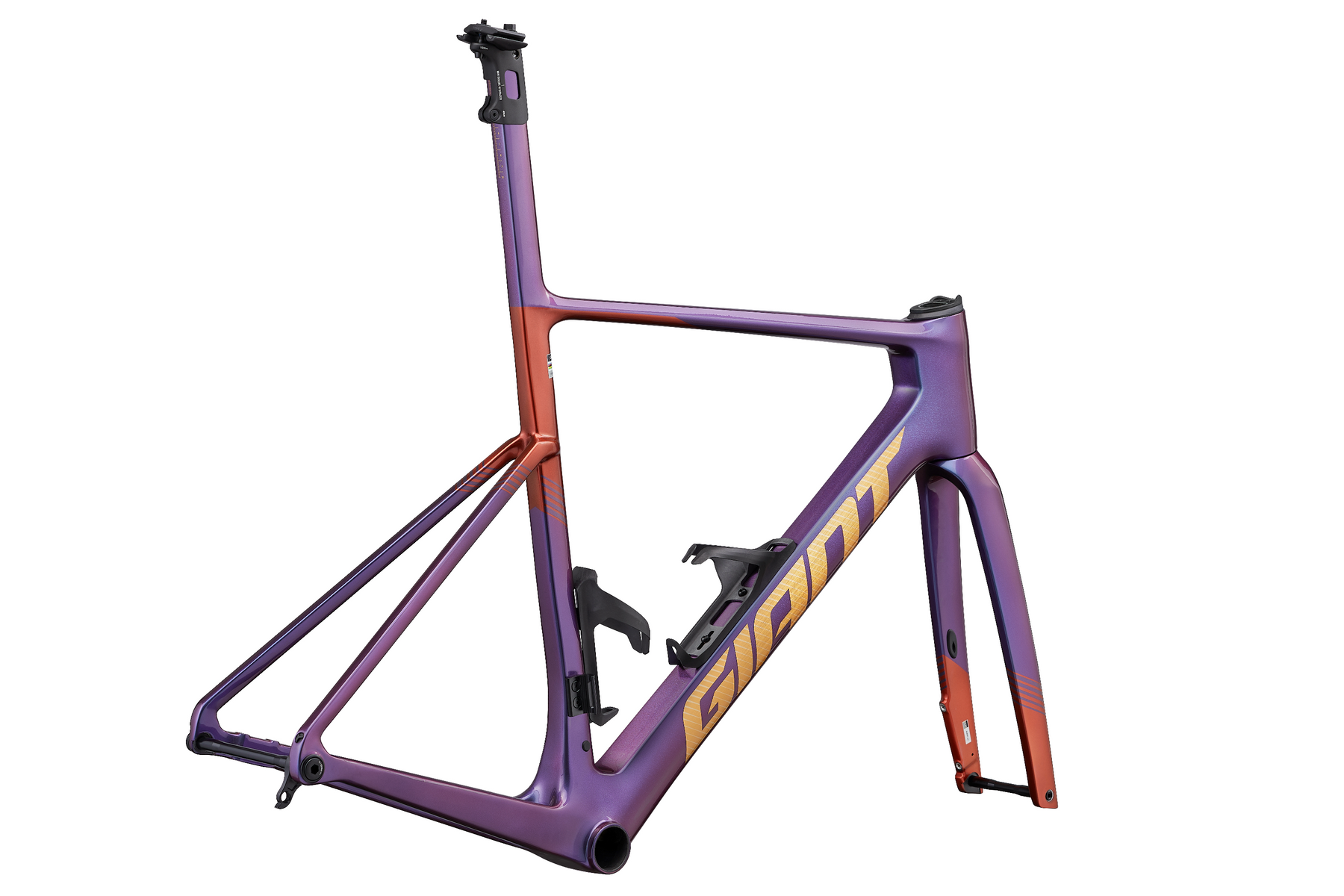

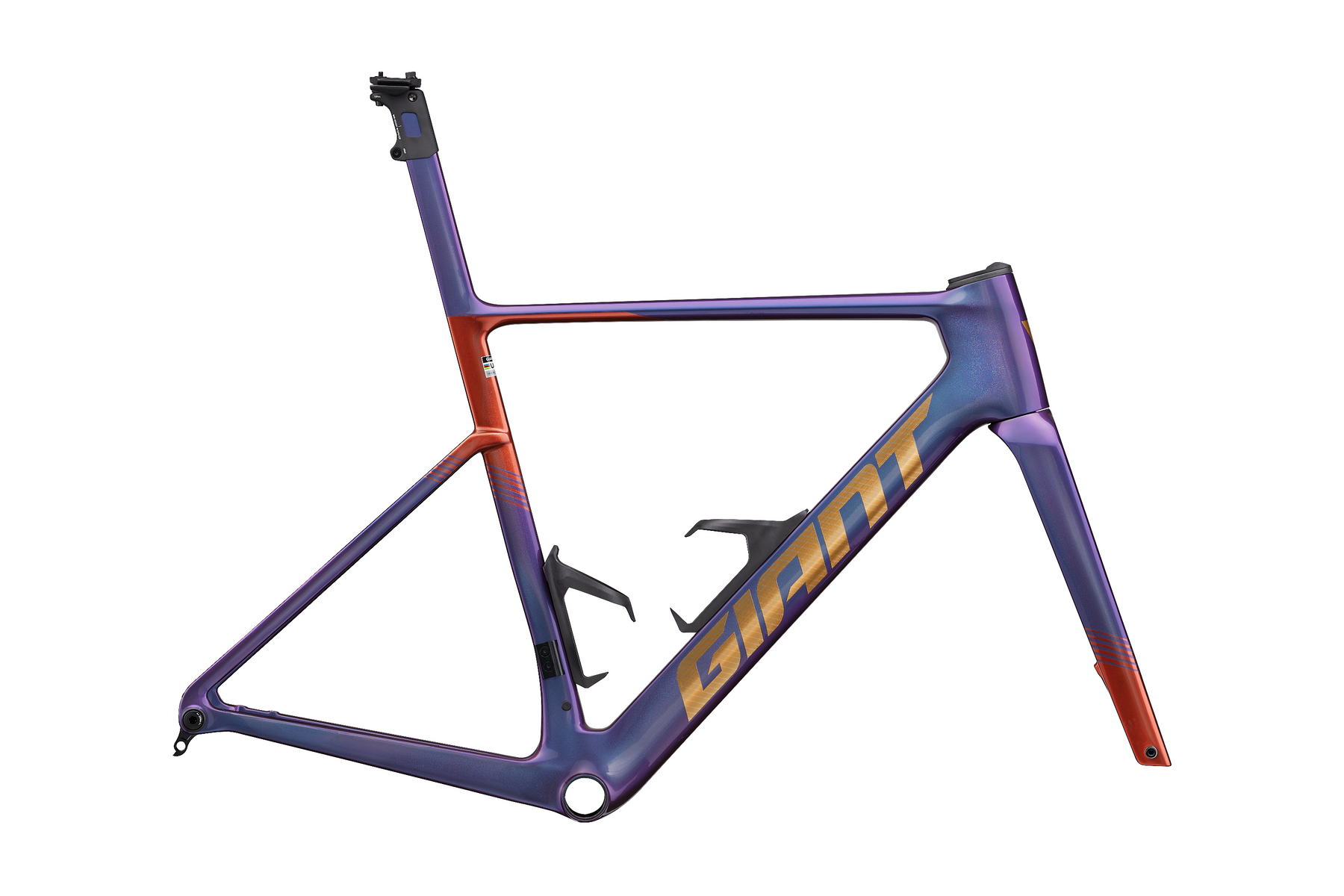

Giant Propel Advanced SL Frameset - Cyber Sunset

Giant SKU: 1906011103
Size
Price
Regular price $5,499.00
Regular price $5,499.00 Sale price $5,499.00
/
Tax included.

From breakaways to the final sprint. On flat roads, climbs or descents. The reengineered Propel Advanced SL cuts through wind and maximizes watts, optimizing your energy through every dimension of speed: top-end speed, instant speed and sustained speed.

INSTANT SPEED In the moments when explosive speed matters most—launching an attack, chasing a break, or sprinting for the finish line—the new Propel Advanced SL is quicker and more dynamic than ever. The whole system sheds 355g from the previous generation and is also more efficient with 14.2% more torsional stiffness and 14.8% greater pedaling stiffness—so you feel instantaneous reaction when you make your move.

SUSTAINED SPEED Engineered for full-bike compliance, the new Propel Advanced SL delivers a significantly smoother ride when you’re rolling in the group or piling up training miles. The Vector integrated seatpost has 25% greater compliance compared to the previous generation. The fork and integrated cockpit absorb bumps and vibrations up front with 15% added compliance. And additional tire clearance allows for high-volume tires up to 32mm, further smoothing out the ride to help you maintain higher speeds with less fatigue.

TOP-END SPEED The frameset, cockpit, wheels and tires form a unified system that lowers total resistance when you’re pushing high speeds in the wind—whether you’re on a solo break, taking pulls at the front, or powering away on a climb. The AeroSystem frame and integrated cockpit minimize drag, while the new CADEX Max 50 WheelSystem and Aero tires reduce rolling resistance. It all adds up to an 18.4W aero and rolling resistance advantages.

Colours Cyber Sunset, Nitro Purple
Sizes XS, S, M, M/L, L, XL
Frame Advanced SL-grade Composite, 12x142mm thru-axle, UDH compatible, integrated seatpost, disc
Fork Advanced SL-grade composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
Shock N/A
Handlebar N/A
Grips N/A
Stem N/A
Seatpost Advanced SL-grade composite, integrated design, -5/+15mm offset
Saddle N/A
Pedals N/A
Shifters N/A
Front Derailleur N/A
Rear Derailleur N/A
Brakes N/A
Brake Levers N/A
Cassette N/A
Chain N/A
Crankset N/A
Bottom Bracket BB86 accepts press fit style BB only, bearing set not included
Rims N/A
Hubs N/A
Spokes N/A
Tyres N/A
Extras Front & rear 12mm thru-axles, 20mm & 45mm ISP clamps, Computer Mount, Bottle Cages, 32mm max tyre size



MY27 Propel Advanced SL XS  S  M  ML L XL
A  Seat tube length  680 710 740 770  800  830
B  Seat tube angle (degrees) 74.50  74.00  73.50  73.00  73.00  72.50
C  Top tube length 520  535  550  565  580  600
D  Head tube length  115 127 145 165  185  200
E  Head tube angle (degrees)  71.5 72.5 73.00  73.00  73.00  73.00
F  Fork rake  45 45 45 45  45  45
G  Trail  67.8 61,4 58.3 58.3 58.3 58.3
H  Wheelbase  971 973 980 990 1006 1020
I  Chain stay length  405 405 405 405  405  405
J  Bottom bracket drop  72.0 72.0 69.5 69.5 67.0 67
K  Stack  515 530 546 565 582 596
L  Reach  377 383 388 392 402 412
M  Stand over height  746  764  787  808  832  847
N  Handlebar width  380  380  400  400  420  420
O  Stem length  80 90 100 110  110  120
P  Crank length  165.0  165.0  170.0  170.0  172.5  172.5
Q  Wheel size  700C 700C 700C 700C 700C 700C
